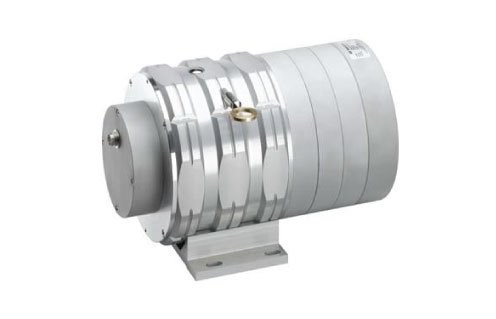

SENSATA-BEI Sensors CDS18 20000 Analog Output Encoder Position Sensors and Encoders
Up to 20 000 mm measurement range, up to 10V and 20mA output signal, SENSATA CDS18 20000 Analog Output Encoder Position Sensors and Encoders
| Manufacturer | SENSATA / BEI Sensors |
|---|---|
| Category | ANALOG DRAW WIRES |
| Model / Series | CDS18 20000 |
| Current (A) | 20mA |
| Voltage (V) | 10V |
| Stock | Limited |
- Lead Time: Based on Stock/MFG
- Shipping Terms: EX-Work Dubai
- Warranty: MFG policy 12 months
- Technical Support: Available
Technical Information
TECHNICAL SPECIFICATIONS
| Measurement range | 0 up to 20,000 mm |
| Output signal | 0…10V (galvanic isolation) |
| 4…20mA current loop | |
| 4…20mA current generator (galvanic isolation) | |
| 0…20mA current generator (galvanic isolation) | |
| Resolution | Quasi infinite (depends on the operating system) |
| Material | Body and cover – aluminum (RohS) |
| Measuring cable – Stainless steel | |
| Cable diameter | 0,90 mm |
| Detection element | Precision potentiometer |
| Connection | Male connector M16 – DIN 8 pin |
| Male connector M12 – 4 pin | |
| PVC cable – 4 wires | |
| Standard linearity | +/- 0,15% f.s. |
| +/- 0,10% f.s. (optional) | |
| Protection class | IPS65 |
| Max. Velocity | 10 m/s |
| Max. Acceleration | 2 m/s2 (before cable deformation) |
| Weight | ≈ 12 kg |
| Operating temperature | -20° to +80°C |
| Storage temperature | -30° to +80°C |
CABLE FORCES
| Measurement range in mm | 20 000 mm |
| Min. pull-out force | ≈ 15,00 N |
| Max. pull-out force | ≈ 30,00 N |
