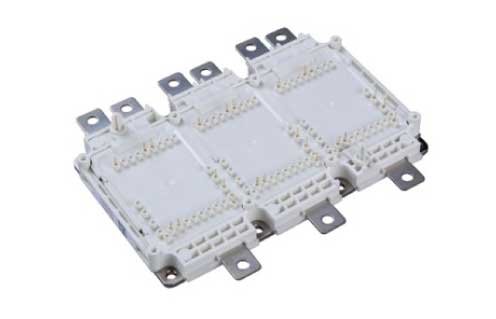

StarPower MD13HTC75P6HE SiC Module
750V/680A (1.25mΩ) 6 in one-package, Package: P6, SiC MOSFET (StarPower MD13HTC75P6HE SiC Module)
| Manufacturer | StarPower Europe |
|---|---|
| Category | AUTOMOTIVE SiC MODULES |
| Model / Series | MD13HTC75P6HE |
| Current (A) | 680A |
| Voltage (V) | 750V |
| Stock | Limited |
- Lead Time: Based on Stock/MFG
- Shipping Terms: EX-Work Dubai
- Warranty: MFG policy 12 months
- Technical Support: Available
Technical Information
General Description
StarPower MD13HTC75P6HE SiC Module provides very low RDS(on) and high blocking voltage.
It’s designed for applications such as hybrid and electric vehicles.
Features
- SiC power MOSFET
- Low RDS(on)
- Optimized intrinsic reverse diode
- Low inductance cases avoid oscillations
- Isolated copper pinfin baseplate using Si3N4 AMB technology
Typical Applications
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive
Circuit Schematic
3 Phase Bridge with NTC
Useful Links
-
Find more technical information about MD13HTC75P6HE SiC MOSFET
-
For more models of Automotive SiC Modules
