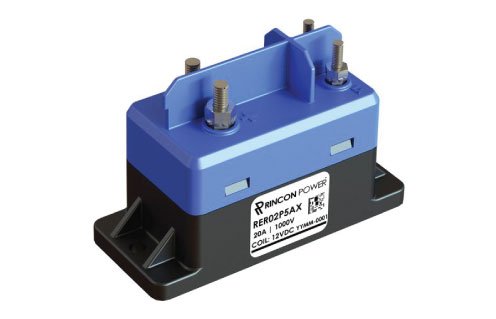

RINCON POWER RER02P5AX DC Contactor (Electromechanical)
20A, 1000VDC, Coil 12VDC (RINCON POWER RER02P5AX DC Contactor)
| Manufacturer | |
|---|---|
| Product Category | |
| Model | |
| Current Rating | |
| Contact Voltage (Operating Max) | |
| Coil Voltage | |
| Stock |
- Lead Time: Based on Stock/MFG
- Shipping Terms: EX-Work Dubai
- Warranty: MFG policy 12 months
- Technical Support: Available
Technical Information
FEATURES
SPST Normally Open High Voltage Contactors
- Meets RoHS 2011/65/EU
- PCB Mountable (optional)
- Low-cost pre-charge solution
TECHNICAL SPECIFICATIONS
| Product Type | DC Contactor (Electromechanical) | |
| Series | RER02 | |
| Main Contact | Form X, SPST NO | |
| Mounting Type | Chassis Mount | |
| Coil Voltage | 12VDC | |
| Contact Form | SPST-NO (DM) (1 Form X) | |
| Contact Rating (Current) | 20 A | |
| Switching Voltage | 1000VDC (Max) | |
| Features | Sealed – Hermetically | |
| Termination Style | Stud | |
| Operating Temperature | -40°C ~ 85°C | |
| Must Operate Voltage | 9Â VDC | |
| Must Release Voltage | 0.8 VDC | |
| Operate Time | 30 ms | |
| Release Time | 10 ms | |
| Coil Power | 3W | |
| Coil Resistance | 48 Ohms | |
| Protection Type | IP67 | |
| Mechanical life | 200,000 cycles | |
Export and Environmental Classification
| Manufacturer | RINCON POWER |
| Classification | DC Contactor (Electromechanical) |
| RoHS Compliant | Compliant  |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Datasheet |  Click to Download |
