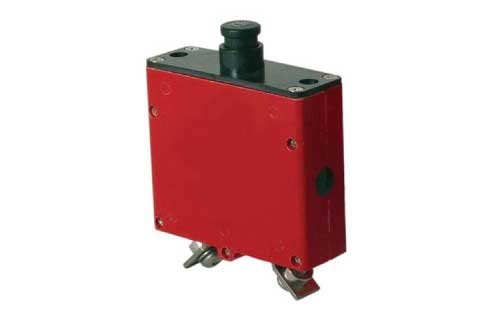

KLIXON 6752-12-35 Aircraft Circuit Breaker
35 Amps, Trip–free, Single-Phase, Ambient Compensated, High vibration resistance, MIL MS24571-35 Aircraft Circuit Breaker
| Manufacturer | |
|---|---|
| Product Category | |
| Model | |
| Current Rating | |
| Stock |
- Lead Time: Based on Stock/MFG
- Shipping Terms: EX-Work Dubai
- Warranty: MFG policy 12 months
- Technical Support: Available
Technical Information
Introduction
SENSATA-KLIXON 6752-12-35 Aircraft Circuit Breaker (MIL Spec MS24571-35) “thermal-magnetic circuit breaker” is designed and manufactured to meet the more stringent military standards of today’s aircraft electrical systems.
The interrupting capacity, vibration resistance, and longer cycling life of the 6752-12 series exceed previous military standards. In addition, the Klixon 6752-12-35 Aircraft Circuit Breaker provides ambient compensation, fault coordination of all ratings, and an option for auxiliary circuits.
Features
- Trip–free design
- Single–phase
- Ambient compensated
- MIL-DTL-27715 qualified
- Current rating: 2.5 to 65 amps
- Long, trouble-free operation: 20,000 operating cycles
- High vibration resistance
- High interrupting capacity
- Option available: Auxiliary circuits
- Circuit protection unaffected by temperature fluctuations (ambient compensated from -53.9°C to 93.3°C)
- Only faulted line circuits opened (coordination ratings ensure that branch circuit breakers trip first under fault conditions)
- Typical use: Aircraft electrical systems
